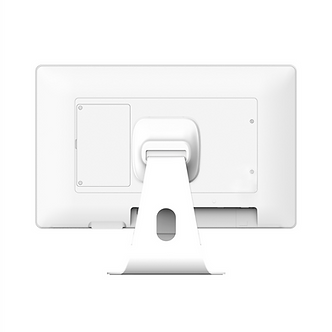

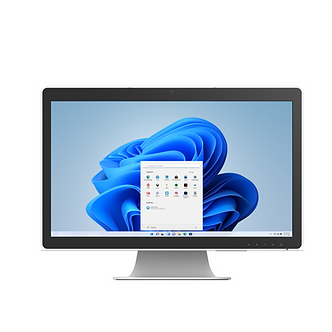

502TF

22" Medical-Grade All-in-One Computer

Powered by a high-performance Intel® Core™ i processor, the 502TF Medical All-in-One system features a 22” touchscreen within a fanless, slim, and bacteria-resistant enclosure, making it ideal for a variety of medical and healthcare applications. Its space-saving design allows for seamless integration into point-of-care environments, while built-in Wi-Fi and BT connectivity enable healthcare professionals to efficiently monitor, record, and manage patient data.

Main Features

Intel® Core™ i5 14400T (up to 4.50 GHz), or i7 14700T (up to 5.20 GHz) processor

- 21.5" Touchscreen with 1920 x 1080

- 8GB to 64GB

- 512GB to 4TB Flash

- Tri-Band Wi-Fi

- Bluetooth 5.3

- Dual RJ45 Gigabit ports

- 4 x Programmable Buttons

- Built-In Microphones and Speaker

- Fanless

Regulatory: ANSI/AAMI ES60601-1, IEC60601-1, IEC60601-1-2, FCC Part 18, FCC Part 15 Class B, GB 17625.1, GB 4943.1, GB/T 9254, CE-EMC, CE-RED, Energy Star 8.0, RCM, CCC

Major Options

- Integrated UPS battery

- 2 Extra COM Ports to replace the existing 2 USB 2.0 and headphone jack

- Potential Equalization Conductor

- IR Camera

- Half-Slot Smart Card/CAC Reader

-NFC/ RFID Reader

Accessories
